✅ 5.12 kWh capacity / 48V
✅ Rackmount 3U form factor
✅ Scalable up to 80 kWh per string
✅ Dynamic BMS with closed-loop comms
✅ Compatible with top inverter brands
✅ Certified safe (UL, CE, UN38.3)
✅ Made for solar, off-grid, telecom…
POINTGUARD home is a next-generation solar battery storage system designed to revolutionize how energy is stored, managed, and used. Engineered as a powerful 5-in-1 solution, it integrates all essential components into one compact and intelligent unit—making it ideal for modern solar installations.
The POINTGUARD system includes:
✅ A high-efficiency PV inverter
✅ A DC fast charger for electric vehicles (EV)
✅ An advanced battery power conversion system (PCS)
✅ A scalable lithium battery pack
✅ An integrated energy management system (EMS)
This all-in-one architecture delivers seamless energy flow between solar panels, the battery, the grid, and EV charging—ensuring maximum self-consumption and minimal energy waste. With POINTGUARD, homeowners and professionals can enjoy a simplified, efficient, and fully optimized solar energy experience.
Whether you’re building a hybrid solar system or going fully off-grid, POINTGUARD adapts to your needs—making it one of the smartest and most complete battery systems on the market today.

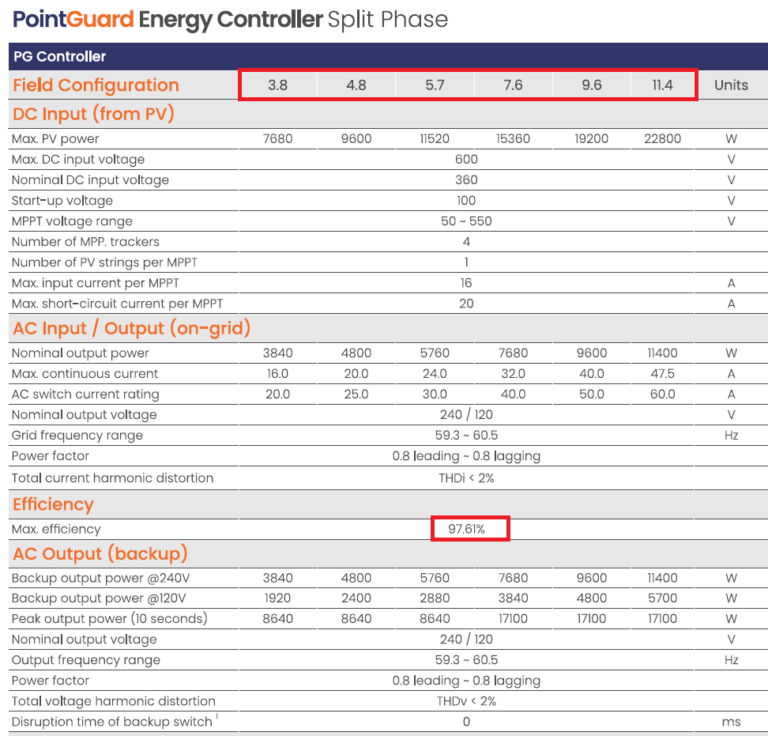

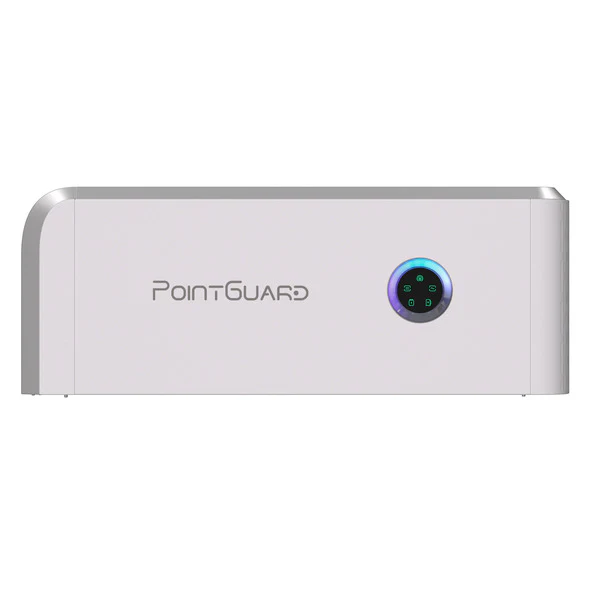

The POINTGUARD Energy Controller is the central intelligence unit of your Pointguard Home solution, engineered to deliver real-time optimization, smart load management, and full control over your energy flow. Designed for hybrid and off-grid setups, this advanced energy management device ensures your system runs at peak efficiency—day and night.
This intelligent controller acts as the brain of your solar installation. It coordinates energy flow between solar panels, batteries, the grid, and connected loads or EV chargers, using predictive algorithms to reduce energy waste and maximize self-consumption.
Key functions include:
⚡ Real-Time Load Monitoring: Track and prioritize energy usage across your devices
🔋 Smart Battery Charging: Optimize battery charge/discharge cycles for longevity
🌤️ Weather-Adaptive Logic: Adjust behavior based on sunlight forecasts and demand
💡 Load Shedding & Backup Power Control: Prevent blackouts and protect critical appliances
📲 Remote Access & Control: Monitor and configure your system via mobile or desktop interface
✅ Field-configurable power, up to 11.4 kW continuous power output.
✅ UL1741 Sb, UL9540, CEC listed
✅ 4x MPPTs, max current 16A for each
✅ Support grid-tied and off-grid applications
✅ Fully compatible with third-party inverters

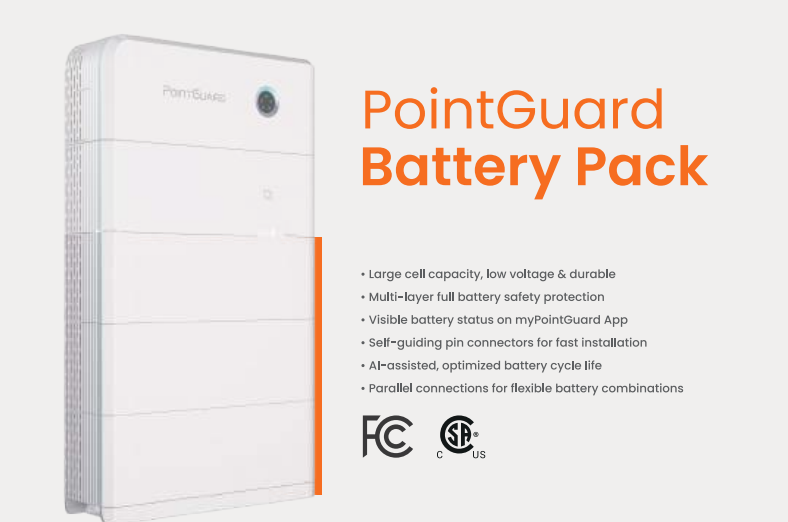

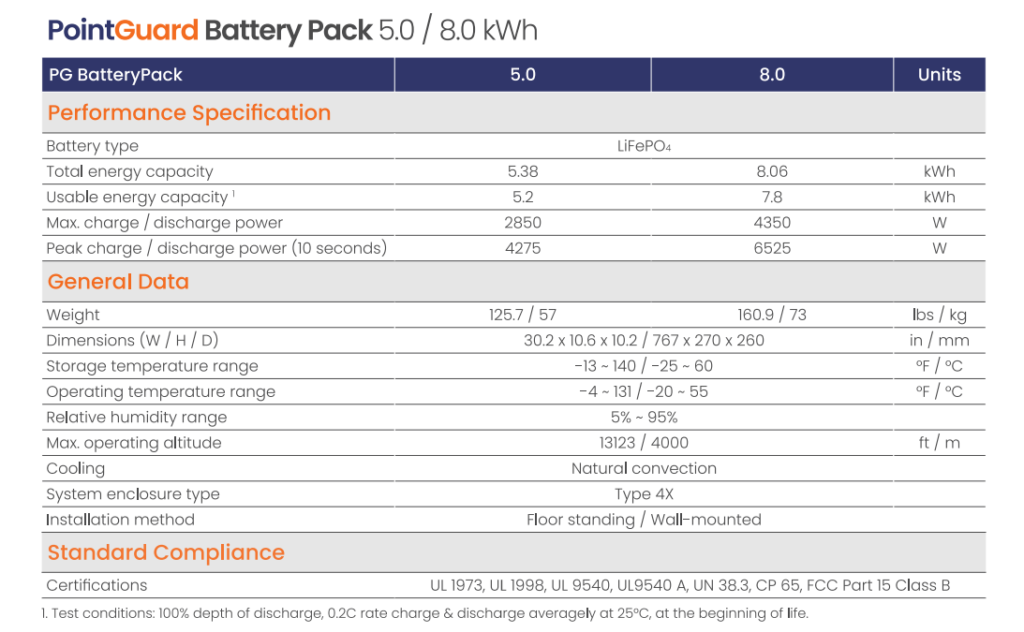

The system is highly modular, allowing users to choose between 5 kWh and 8 kWh battery modules, which are interchangeable and built with EV-grade 280Ah cells. This design provides a storage capacity ranging from 5 kWh to 37.6 kWh.
Such flexibility is especially valuable for commercial applications, where multiple POINTGUARD units can be connected in parallel to meet higher capacity requirements.
✅ UL 1973/9510 A certified.
✅ Active BMS, human-safe voltage (32V per pack).
The POINTGUARD system also stands out by prioritizing battery safety through a five-layer protection system. This includes advanced temperature sensors, an internal fire extinguisher, aerogel insulating pads, pressure relief valves, and high-temperature-resistant cushions. This proactive approach ensures safe risk management from the outset, making the system truly unique on the market.
✅ Cell-level temperature monitoring (8x sensors per pack).
✅ Aerogel insulated pads, preventing thermal-runway
✅ Internal fire extinguisher.
✅ Decompression valve to avoid explosion of the enclosure in case of damage.
A well-designed BMS plays a central role in system protection. It typically halts charging or discharging in response to unsafe conditions like high/low temperatures or voltages. In a closed-loop setup, once the condition resolves, the BMS can also automatically resume operation—without user intervention.
Take cold-weather charging, for instance: lithium batteries are particularly vulnerable below freezing. A BMS will stop charging below 0 °C and only allow it to resume once the temperature returns to a safe level. Some advanced batteries incorporate internal heating or strict low-temperature logic to ensure optimal operation in colder climates.
Closed-loop systems also greatly reduce the burden of manual configuration. The BMS communicates charging parameters directly to compatible inverter-chargers using standardized communication protocols—often via robust and reliable CAN bus over CAT5 or similar cabling.
However, because signal wiring (e.g., CAN High, CAN Low, Ground) varies between brands, correct wiring and cable preparation are essential. Installers must refer to the inverter’s technical documentation and may need to set master-slave configurations when using multiple batteries in parallel.
A practical solution for these challenges is the LYNK II Communication Gateway, which bridges communication between Discover AES Rackmount battery batteries and supported inverter-chargers. It simplifies integration by eliminating the need for crossover cables and automatically managing battery network communications.
Some systems go further by enabling dynamic charging, where the BMS continuously sends optimal, real-time voltage and current targets. This approach shortens charging time and minimizes energy losses from cable resistance.
Dynamic systems also excel at cell balancing—a process that evens out charge across all cells in the battery. The BMS slightly raises voltage at the end of the charge cycle while reducing current, allowing higher-voltage cells to finish charging safely.
| Version | 48-48-5120, 48-48-5120-H (heated) |
|---|
